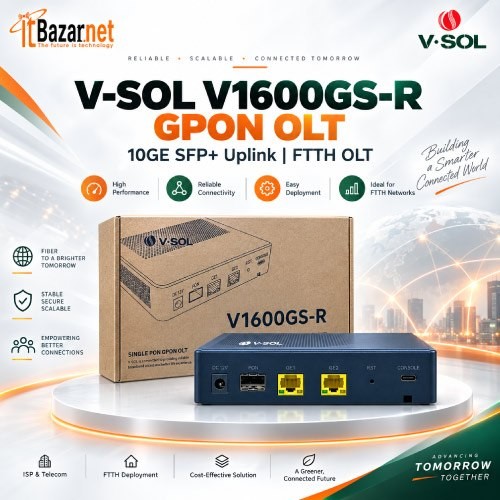

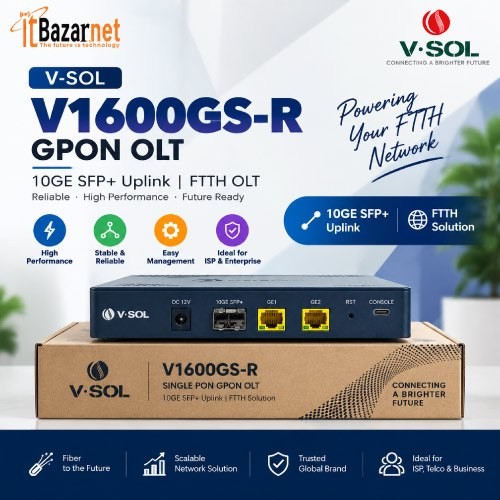

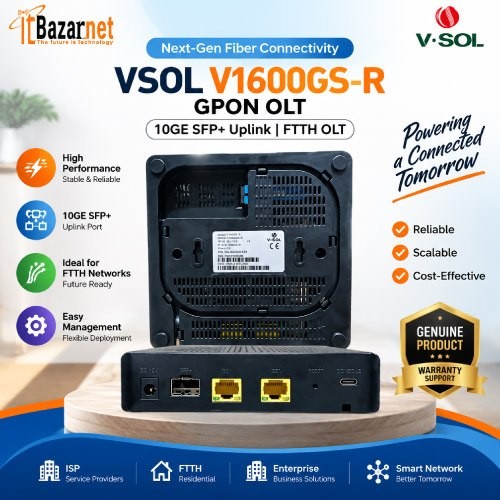

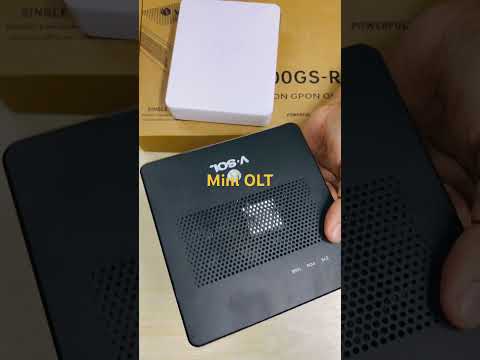

VSOL Mini OLT V1600GS-R

VSOL V1600GS-R হলো একটি compact, fanless Single-PON GPON OLT, যা ছোট ISP, FTTH, SOHO এবং SMB নেটওয়ার্কের জন্য উপযোগী। এতে 1টি GPON PON port, 2টি Gigabit Ethernet port এবং 1টি 10GE SFP+ uplink রয়েছে।

প্রধান বৈশিষ্ট্য

• Model: VSOL V1600GS-R

• GPON Port: 1 PON

• Uplink: 1× SFP/SFP+ (1GE/10GE)

• Ethernet: 2× Gigabit RJ45

• 10GE Uplink: SFP+ interface

• GPON Speed: 2.488Gbps Downstream / 1.244Gbps Upstream

• Maximum Split Ratio: 1:64

• Transmission Distance: Up to 20KM

• Fiber: 9/125μm Single Mode Fiber

• Connector: SC/UPC

• Wavelength: TX 1490nm / RX 1310nm

• Optical TX Power: 7.5 ± 0.5 dBm

• Receiver Sensitivity: -30dBm

• Management: WEB / Telnet / CLI / SNMP

• Management Port: USB-COM (Type-C)

• Backplane Bandwidth: 29Gbps

• Forwarding Rate: 21.576Mpps

• Power: DC 12V/1A

• Maximum Power Consumption: 5W

• Design: Compact & Fanless

প্রধান বৈশিষ্ট্য

• Model: VSOL V1600GS-R

• GPON Port: 1 PON

• Uplink: 1× SFP/SFP+ (1GE/10GE)

• Ethernet: 2× Gigabit RJ45

• 10GE Uplink: SFP+ interface

• GPON Speed: 2.488Gbps Downstream / 1.244Gbps Upstream

• Maximum Split Ratio: 1:64

• Transmission Distance: Up to 20KM

• Fiber: 9/125μm Single Mode Fiber

• Connector: SC/UPC

• Wavelength: TX 1490nm / RX 1310nm

• Optical TX Power: 7.5 ± 0.5 dBm

• Receiver Sensitivity: -30dBm

• Management: WEB / Telnet / CLI / SNMP

• Management Port: USB-COM (Type-C)

• Backplane Bandwidth: 29Gbps

• Forwarding Rate: 21.576Mpps

• Power: DC 12V/1A

• Maximum Power Consumption: 5W

• Design: Compact & Fanless

VSOL Mini OLT V1600GS-R GPON 1Port with 10GE SFP+ Uplink

Product Code: 878263786558

Warranty: 2-Years

Call For Order: 8801975700755 & 09639122022
